Are you looking to scale your road safety equipment production? Introducing the automatic highway guardrail roll forming machine from us. This fully integrated production line transforms steel coils into finished W beam crash barriers in one continuous process. It eliminates multiple traditional steps and boosts efficiency by up to 10 times .
What Makes This Highway Guardrail Roll Forming Machine Exceptional?
This highway guardrail roll forming machine is not just equipment; it is a complete manufacturing solution. It combines leveling, feeding, punching, forming, and cutting into one seamless system. Unlike traditional methods that require separate machines for each task, this line handles everything automatically.

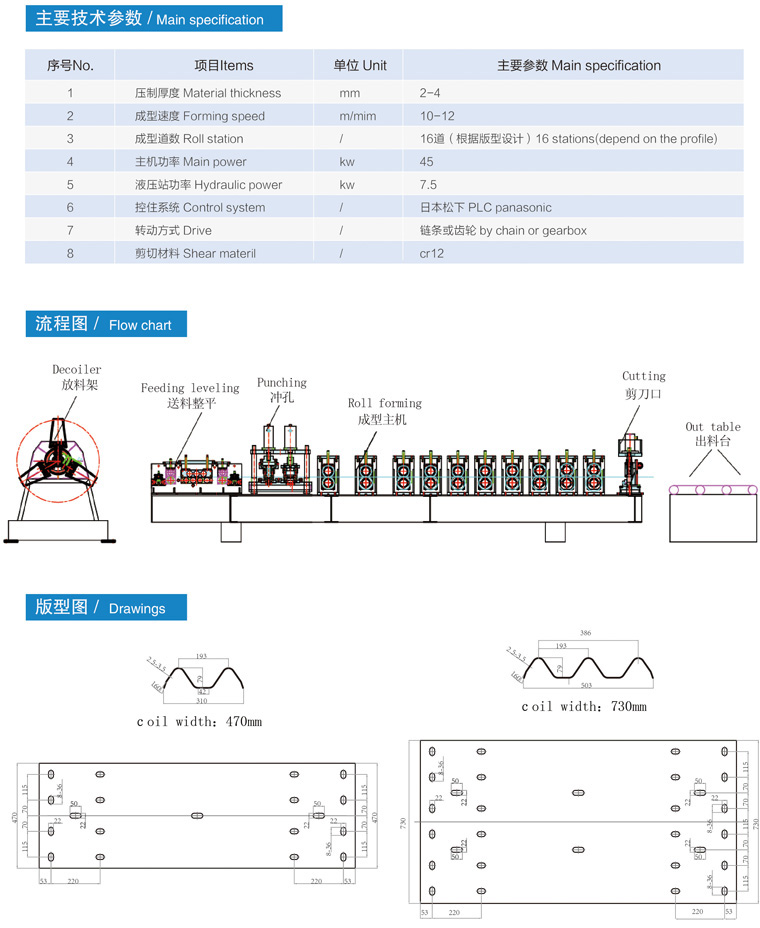

The production line consists of:
-
Feeding System: Smooth coil handling prevents material damage.
-
Punching System: Hydraulic punching creates precise holes for bracket mounting.
-
Forming System: Approximately 17 forming stations shape the steel accurately.
-
Cutting System: Automatic flying cut ensures exact panel lengths.
-
Electrical Control System: PLC computer control for full automation.
Key Benefits for Your Business
1. High Safety Performance
Traditional guardrail production involves multiple dangerous steps. Workers face risks during cutting, slitting, punching, and bending. Our highway guardrail roll forming machine eliminates these separate processes. It combines everything into one automated system. This significantly reduces workplace accidents and safety hazards. Your team works safer and smarter.
2. High Production Efficiency
Why manage multiple machines and extra workers? This automatic line saves you manpower, management time, and material waste. It reduces intermediate handling steps between processes. The result? You can improve production efficiency by 5 to 10 times compared to traditional multi-step processes. Meet large project deadlines with confidence .
3. High Degree of Automation
The PLC computer control system makes operation simple. Workers do not need manual calculations for hole spacing or bracket dimensions. The system automatically adjusts for length, hole position, and profile requirements. The highway guardrail roll forming machine runs fully automated. It requires minimal human intervention. One operator can manage the entire production line.
4. High Profile Accuracy
Manual punching and bending often create inconsistent dimensions. Profiles vary in quality and appearance. Our roll forming line produces profiles with extremely high dimensional accuracy. The result is a uniform and professional finish. Panels fit together perfectly during highway installation. This quality reflects well on your brand and projects.
Technical Specifications
| Specification | Detail |
|---|---|
| Material | Q235A Steel |
| Material Thickness | 3.0mm to 5.0mm |
| Production Speed | 0-15 m/min (excluding punching) |
| Forming Channels | Approximately 17 stations |
| Roll Material | GCr15 (quenched 58°-62°, chrome plated) |
| Drive Mode | Universal joint transmission (120 * 500) |
| Motor Power | 45KW |
| Control System | PLC Panasonic |
| Dimensions (L×W×H) | Approx. 18.0m × 2.2m × 1.5m |

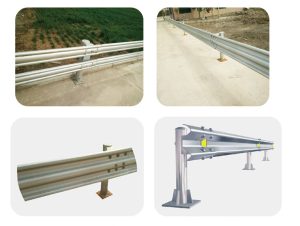

Applications: Highway Safety Solutions
This versatile machine produces guardrails for various applications:
-
Highway Crash Barriers: Main application for roadside safety.
-
Bridge Guardrails: Protection on elevated structures.
-
Mountain Road Barriers: Curved sections for winding roads.
-
Parking Lot Separators: Heavy-duty barriers for commercial areas.
The W beam design provides enhanced stability and strength. It absorbs impact energy effectively. This protects vehicles and passengers during collisions. The hot galvanized finish ensures long-lasting durability against harsh weather and road conditions.
Why Choose Our Machinery?
We are a reliable brand known for quality construction equipment. Our machines are built to withstand harsh industrial environments. We use durable components throughout. The forming wheel material is GCr15 with quenched treatment. We harden it to 58°-62° and apply surface chrome plating. This ensures long service life and consistent product quality.
We understand that buying a highway guardrail roll forming machine is a significant investment. That is why we offer comprehensive support. We help with installation, operator training, and spare parts. Our team speaks your language and understands your market.
Contact Us Today
Ready to transform your guardrail production? Get in touch with us for more information.
-
Website: https://rollforming.cc
-
Email: rollformingmachine.cc@gmail.com
Ask us about pricing, delivery times, and customization options. We can adjust the machine for different material thicknesses or profile specifications. Let us help you build safer roads with better equipment.
