Incredible High Speed Line: 5 Game-Changing Benefits for Your Metal Production

A high speed line is the backbone of modern, efficient metal fabrication. Designed for maximum throughput and precision, this type of automated roll forming system transforms raw steel coil into finished profiles with breathtaking speed and accuracy. This article delves into the critical specifications, immense advantages, and innovative engineering behind a state-of-the-art high speed roll forming system.

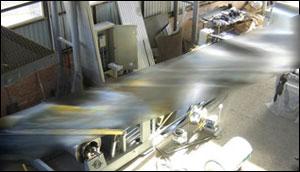

What is a High Speed Line?

In industrial manufacturing, a high speed line typically refers to an integrated system of machinery that uncoils, straightens, feeds, forms, and cuts metal coil into specific shapes continuously and at exceptionally high rates. Unlike standard lines, a true high-performance production line is engineered for minimal vibration and maximum stability at velocities that can exceed 80 meters per minute, making it a critical asset for high-volume producers.

Core Specifications of Our High Speed Line

Our high speed metal processing lines are built with robust materials and precision components to deliver consistent, reliable performance. Below are the key technical specifications that define our system’s capabilities:

• Material Compatibility: Designed primarily for normal carbon steel and other metals.

• Thickness Range: Handles a versatile material thickness of 0.5mm to 4.0mm.

• Material Strength: Capable of processing coils with a yield strength (δs) of 235 MPa and a tensile strength (δb) of 380 MPa.

• Coil Dimensions: Accommodates a maximum coil diameter of 2000mm and widths from 600mm to 1600mm.

• Max Coil Weight: A hefty 25,000 kg (25 tons) capacity reduces the frequency of coil changes.

• Unmatched Speed: The line operates at an adjustable speed of 0-80 meters per minute, allowing for precise control over production flow.

Precision and Accuracy Metrics

The true mark of a superior high speed line is its ability to maintain precision at velocity. Our systems are calibrated to exacting standards:

• Cut-to-Length Tolerance: ±2mm per 2000mm of material.

• Diagonal Tolerance (Catercorner): ±3mm per 2000mm, ensuring perfect rectangularity.

This level of accuracy ensures that every piece coming off the rapid production line is consistent, reducing waste and improving the quality of the final assembled product. For more on industrial tolerances, the American Society of Mechanical Engineers (ASME) provides extensive standards and resources.

The 5 Game-Changing Benefits of Our High Speed Line

Investing in this technology transforms your manufacturing workflow. Here are the top five benefits:

1. Drastic Increase in Production Output

With operational speeds of up to 80 meters per minute, our high speed line can multiply your daily output compared to conventional machinery. This allows you to fulfill large orders faster and take on more business without expanding your facility footprint.

2. Enhanced Operational Efficiency

The integration of decoiling, forming, and cutting into one seamless, automated process eliminates bottlenecks. This continuous flow minimizes manual handling, reduces labor costs, and optimizes your entire production cycle.

3. Superior Consistency and Reduced Waste

The precision engineering of our automated forming line guarantees that every product length is identical. Tight tolerances on length and diagonals mean components fit together perfectly in assembly, significantly reducing material waste and rework.

4. Remarkable Flexibility and Quick Changeovers

Despite its high throughput, the line is highly adaptable. The adjustable speed control (0-80 m/min) allows operators to fine-tune the process for different materials and profiles. Combined with quick-change tooling, this enables efficient runs of both large and small batches.

5. Unbeatable Return on Investment (ROI)

While the initial investment is significant, the combination of increased output, lower labor costs, and reduced material waste leads to a rapid ROI. The high speed line becomes a profit center, not just a piece of equipment.

Our Custom Design and Engineering Service

We understand that no two manufacturing challenges are identical. That’s why we don’t just sell machines; we provide solutions. Our team of engineers will design and calculate the most efficient cold roll forming machines specifically for your application. We consider your material specs, desired final profile, and production goals to deliver a tailored high-speed system that maximizes your productivity from day one.

Commitment to Lifetime Support: Our Aftersales Service

A machine is only as good as the support behind it. We pride ourselves on providing a comprehensive and responsive aftersales service. This includes:

• Professional installation and commissioning.

• Comprehensive operator and maintenance training.

• Ready access to spare parts and technical support.

• Troubleshooting assistance to minimize downtime.

For insights into maintaining industrial machinery, the Society of Manufacturing Engineers (SME) offers valuable training and publications.

Conclusion: Power Your Future with a High Speed Line

In today’s competitive landscape, efficiency is king. Integrating a advanced high speed line into your factory is a decisive step toward dominating your market. It represents a commitment to quality, productivity, and technological progress. If you are ready to elevate your manufacturing capabilities, contact us to discuss a custom-designed solution that will drive your business forward for years to come. Contact us now.
