by rollformerAdmin | Mar 3, 2014 | C Z purlin, Products
80-300 c purlin roll forming machine — cold roll forming machine supplier Specification: product parameters: 80-300mm working speed: 12m-15m/min (without cutting and punching) roll stations: 25 material: Cr12+HRC58-62 main shafter material: 45# steel, D76mm...
by rollformerAdmin | Feb 27, 2014 | Decoiler, Products
15 ton hydraulic decoiler for roll forming machine — cold roll forming machine supplier Specification: double sided, hydraulic drive: decoiler spec.: 508(D)*1300MM Range: 460(D)~520(D) Drive: hydraulic Power: 4KW Max load: 15T … Here are similar decolier...
by rollformerAdmin | Feb 23, 2014 | Automatic Stacker, Products
11.5m automatic stacking/stacker for cold roll forming machines — cold roll forming machine supplier Specification: 11500mm*2550mm*1800mm Working speed: 10m~20m/min Roller stations: 7 Main power:３kw Control System: PLC, panasonic … Can also produce 8m...
by rollformerAdmin | Feb 20, 2014 | Decoiler, Products
10Ton Hydraulic ele-drive un-coiler — cold roll forming machine supplier single side, hydraulic strengh. coiler spec.: 508(d)*1300mm range: 460(d)~520(d) oild-cylinder: 160(d)*90mm drive: oil max load: 10T decoiler power: 5.5kw … For other decoiler or...
by rollformerAdmin | Feb 15, 2014 | Products

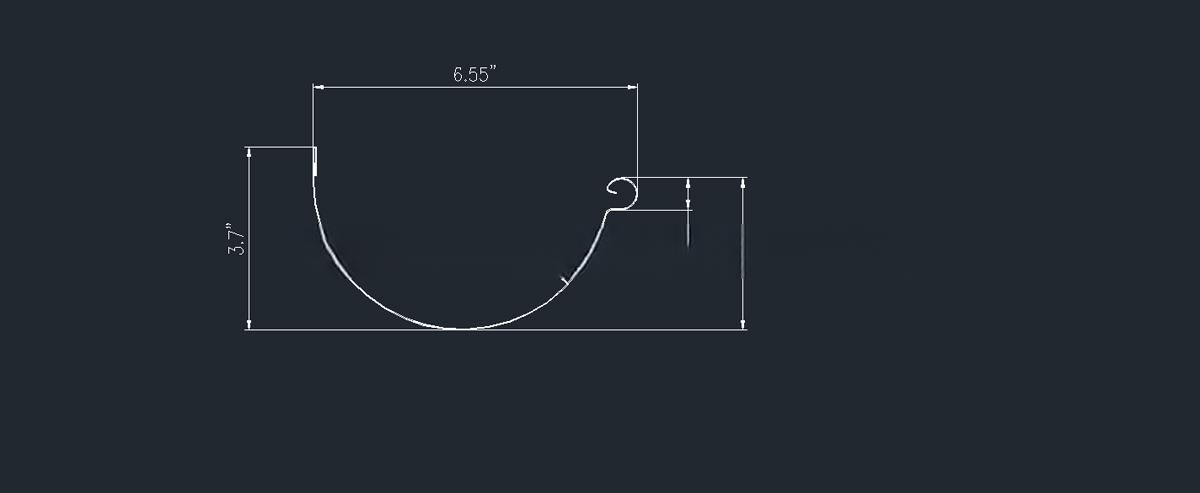

WATER CHANNEL MACHINE — 6 inch custom made machine Channel cold roll forming machine details Specification: 300*(0.4~0.6)*L, yield strength G195MPA Working speed: 10~12m/min Stations: 18 + some assisit roller Roller material: 45# Chrome finished Shafter...
by rollformerAdmin | Feb 12, 2014 | Bending machines, Products
CNC bending machine — 5M AND 7M Used for ridge, door, hole, window, ect… Max bending thickness: 1.5mm steel panel 2.0mm aluminium panel 1.0mm stainless steel Max bending length: 7000mm(5000mm) Max bending angel: 125 Hydraulic power: 7.5kw Power: 8kw...
by rollformerAdmin | Feb 10, 2014 | Decoiler, Products
Hydraulic electrial drive decoiler –5 TON decoiler for cold roll forming machine Main Parameter of 5Ton hydraulic electrial drive decoiler Structure: steel, hydraulic drive fauxbar Specification of uncoiler: 508(Diameter)*1300mm Harmomegathus: 460(D)~520(D)...
by rollformerAdmin | Feb 10, 2014 | Decoiler, Products
Double sides hydraulic electrial drive decoiler — 2*6 Ton for cold roll forming machine Main Parameter of 2*6Ton double sides hydraulic electrial drive decoiler Structure: steel, hydraulic drive fauxbar Specification of uncoiler: 508(Diameter)*1300mm...
by rollformerAdmin | Feb 8, 2014 | Down pipe
Down pipe shaping and Bending — cold roll forming machine supplier Down pipe shaping parameters: Main power: 3kw Hydraulic power: 5.5kw Forming speed: 0~10mm/min Stations: 19 Material: 0.5~0.6 color steel panel Roller material: 45# Control system: PLC Cutting...
by rollformerAdmin | Feb 1, 2014 | C Z purlin
Z purling cold roll forming machine –cold roll forming machine supplier 1) Production Characteristic and use: Z and Z purlin roll forming machine adopt new station to increase the firmness of the machine; and the machine adopt gearbox transmission to ensure...
