GLAZED ROOF FORMING MACHINE
— YX27-166.7-1000
Here is a design for negriya clients which need glazed roofing roll forming machine.
The requirement is like below:
The main technical parameters
- Raw material of the panel: color steel( prepainted steel), thickness is 0.4-0.6mm, width is about 1200mm, effective width is 1000mm.
- The height of stanza is 20+1mm.
- Rolling speed: 0-3m/min
- Roll station: 16 steps.
- Roller’s material: 45# high quality steel finishing processing, the surface of hard chromium plating
- Main shaft material: 45# high-quality round steel , diameter: φ80mm
- Chainwheel material: 45# , 18 teeth, 16A
- Stander: welding by 350*175H steel welding, 16mm wall panel type, 6210 fine quality bearing.
- Main motor power: 5.5KW, cycloid pinwheel reducer., frequency control.
- The machine size(L*W*H): about 9500mm*1600mm*1600mm
- Complete computer control the length of stanza and panel, hydraulic forming cutter.
- Cutter material: Cr12Mov、quenching treatment.
- Motor power of hydraulic station: 4KW
- Electronic components: Schneider from France, PlC and transducer with mitsubishi from Japan.

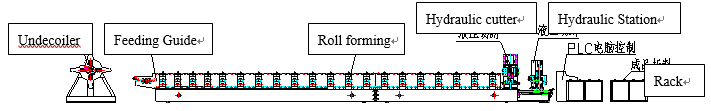

The main structure of the machine
The machine is constituted of passive-type hydraulic decoiler, guiding and feeding parts、forming parts、ladder profiling、cutting parts、hydraulic system、PLC computer controlling system、exit rack .
Production process equipment
Decoiling→ guiding and feeding(through the school-oriented platform into the first roller) →roll forming→(roll forming through 16 rollers) →hydraulic ladder molding→hydraulic forming cutting→run out table(using exit rack)

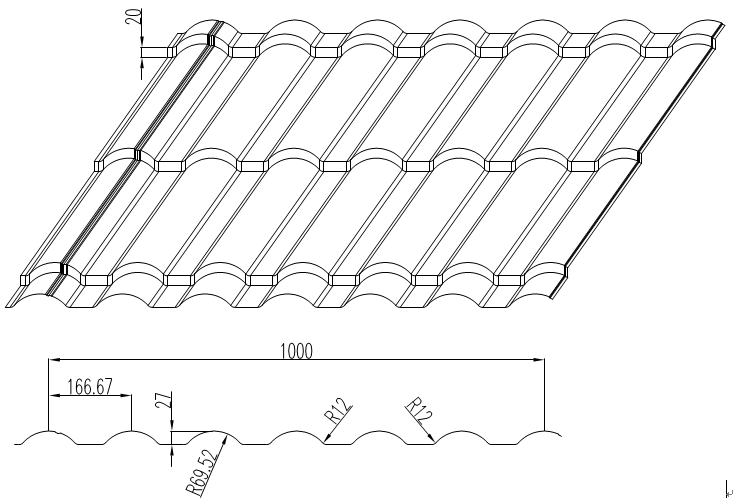

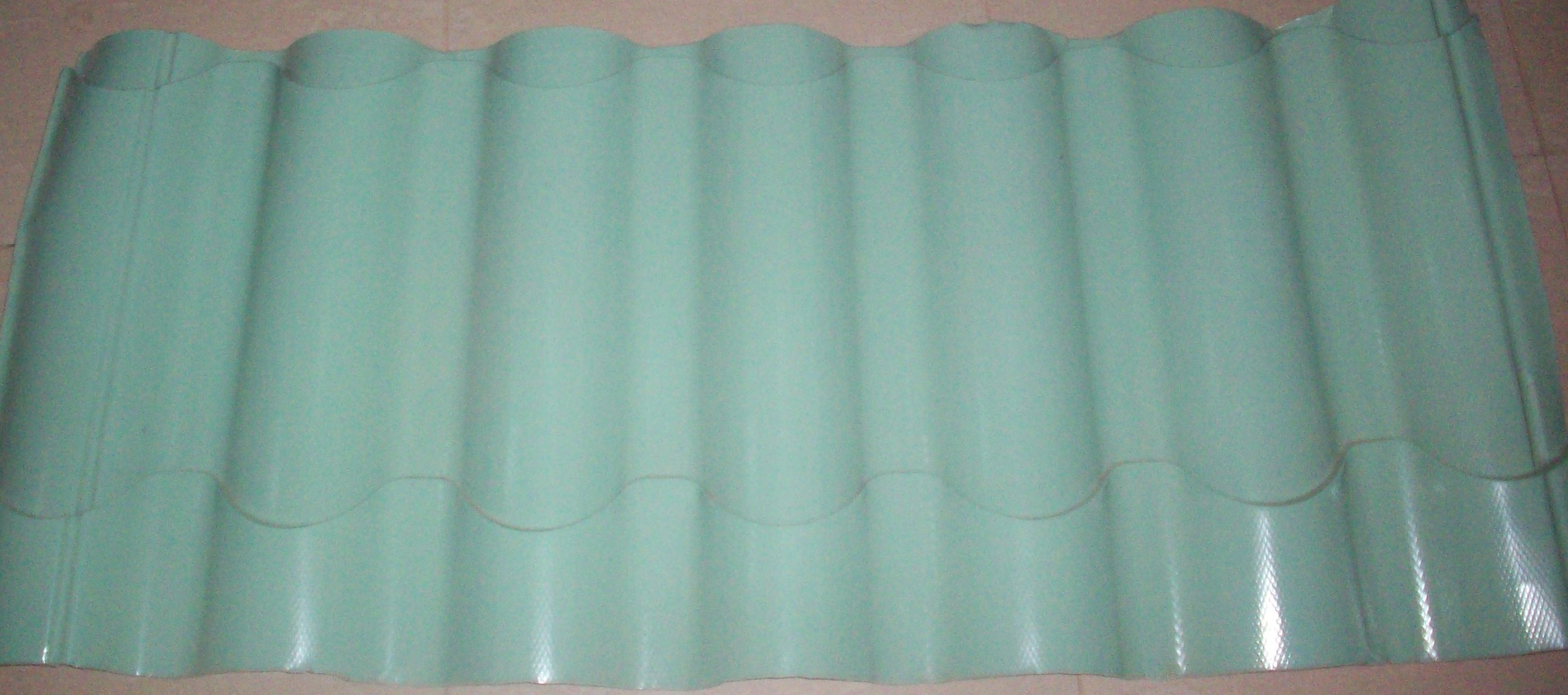

The final glazed roof panels will like below:
More details, please send us your requirement.
